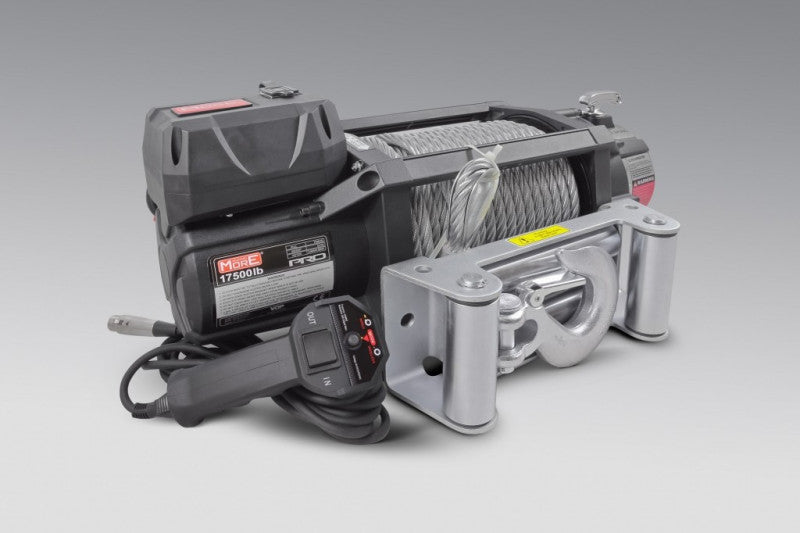

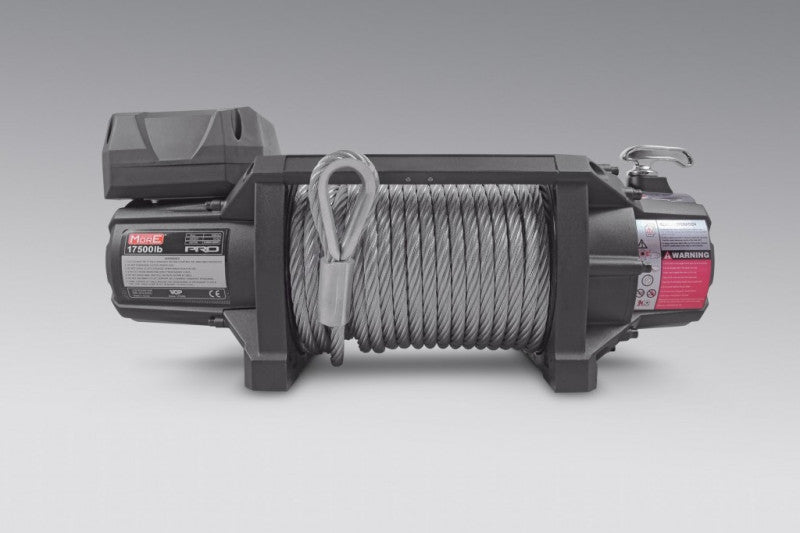

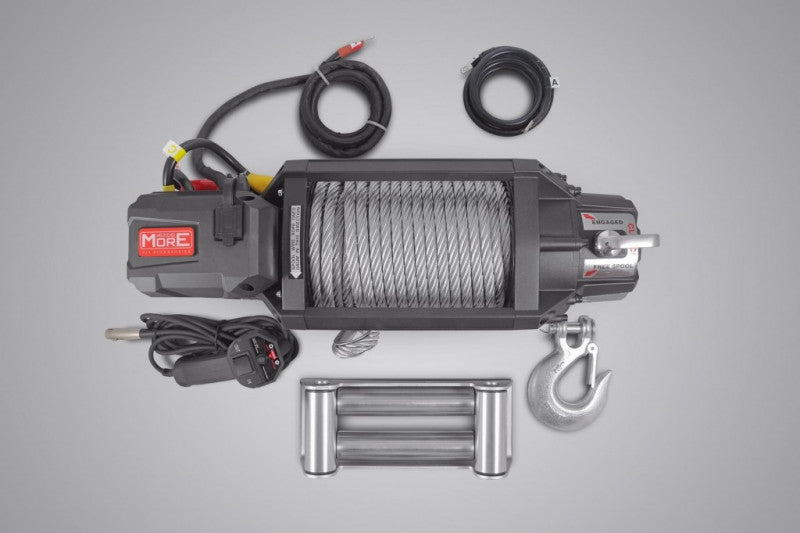

Winch MorE 4x4 PRO 17500lbs 12V Remote Control

The More 4x4 PRO 17500 electric winch is an absolute powerhouse, specially developed for extreme loads. With a powerful 6.6 HP motor and comprehensive waterproof protection mechanisms, this winch is the first choice for ambitious off-roaders, hunters, foresters, as well as for use on special vehicles and light trucks.

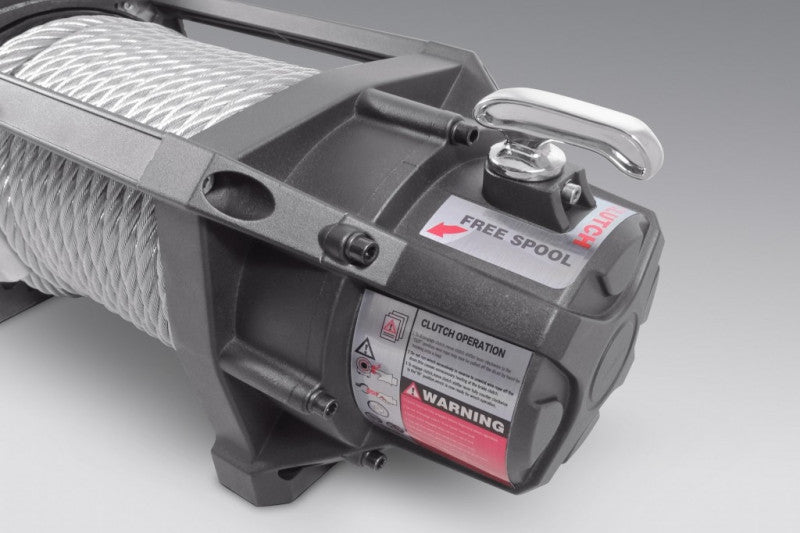

A standout feature of the PRO 17500 is its excellent protection against the elements: additional seals on the drum, motor supports, and gearbox reliably prevent water and mud from entering. The waterproof relay box is not permanently integrated. This allows for either flexible, protected mounting in confined spaces (such as inside bumpers) or the classic installation directly above the winch motor. Furthermore, this model features a state-of-the-art, automatic braking system based on friction elements, designed after the model of leading US American winch manufacturers.

The highlights of the PRO 17500 at a glance:

• Maximum weather protection: Special seals on the drum, motor, and gearbox effectively protect the mechanics from water, moisture, and mud.
• Variable relay mounting: The waterproof control box can be mounted either offset for space-saving or directly above the motor.
• Modern friction braking system: Based on proven American designs, it guarantees an absolutely secure hold of the load in the drum.
• Massive 4-way fairlead: The robust roller fairlead ensures optimal and material-friendly rope guidance, even at extremely angled pull angles.
• Full 5-year warranty: The manufacturer provides a comprehensive 5-year warranty on every More 4x4 electric winch.

Technical data:

• Maximum pulling force: 7,954 kg (17,500 lbs)
• Motor: 6.6 HP / 4.9 kW (DC 12V)
• Control: Wired remote control (3.7 m cable) & wireless remote control
• Gearbox: 3-stage planetary gear
• Gear ratio: 432:1
• Brake: Automatic friction brake, built into the drum
• Drum dimensions: Diameter 89 mm / Length 228.6 mm
• Rope: 28 meters length × 12 mm diameter
• Rope guide: Robust 4-way roller fairlead
• Power cable: 38.5 mm², length 183 cm
• Weight: 53.0 kg
• Dimensions (W x D x H): 563 x 194 x 253 mm (incl. lever)
• Mounting hole pattern: Standard 254 x 114 mm
• Recommended battery: Minimum 64 Ah

Performance values (rope speed and current consumption on the 1st rope layer):

Pulling force and rope capacity by rope layer:
