Winch Bumper Suzuki Grand Vitara 1 FT GT

• Suzuki

• Grand Vitara FT/GT

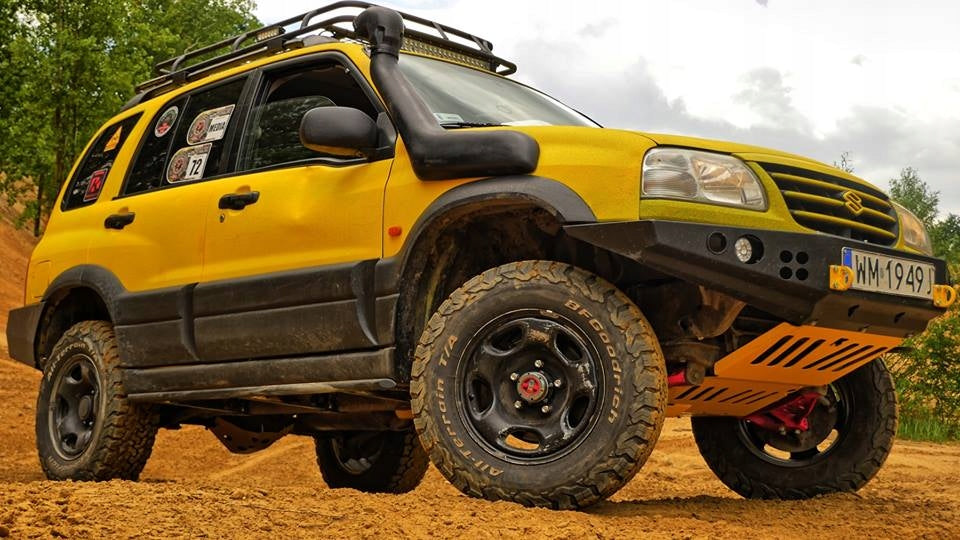

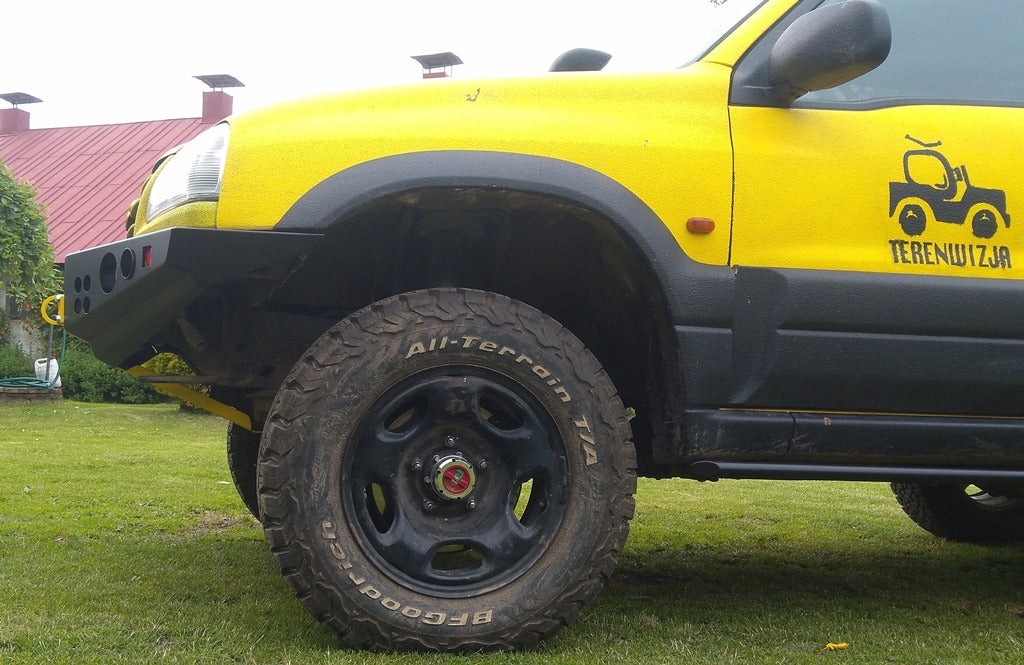

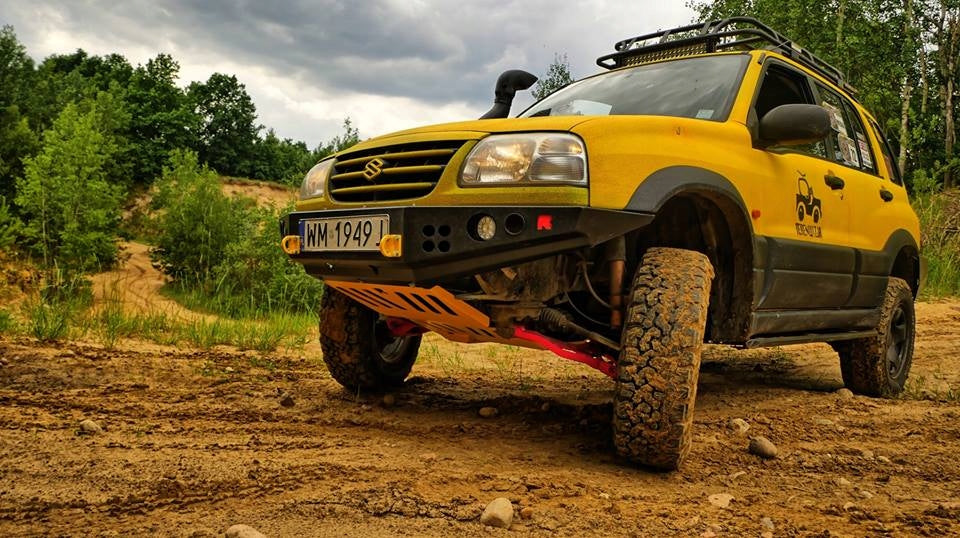

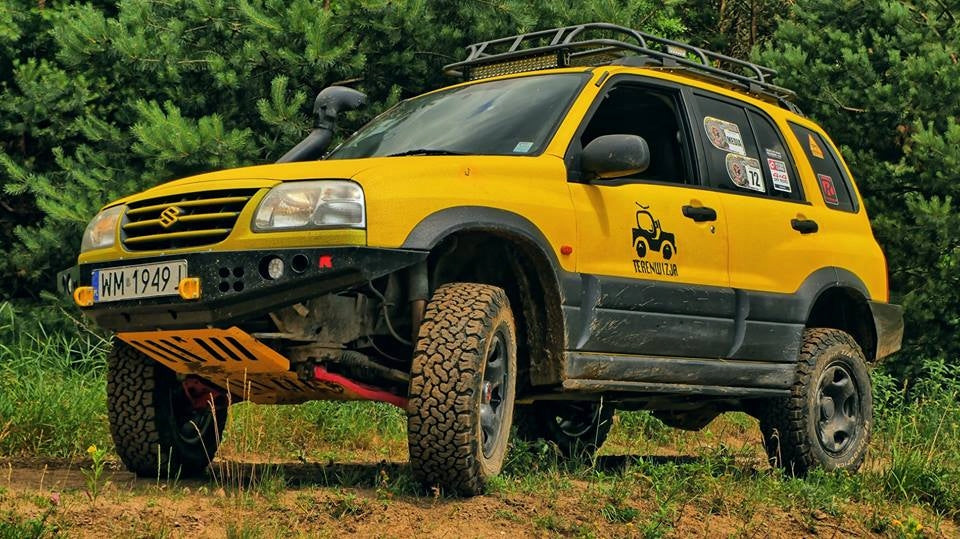

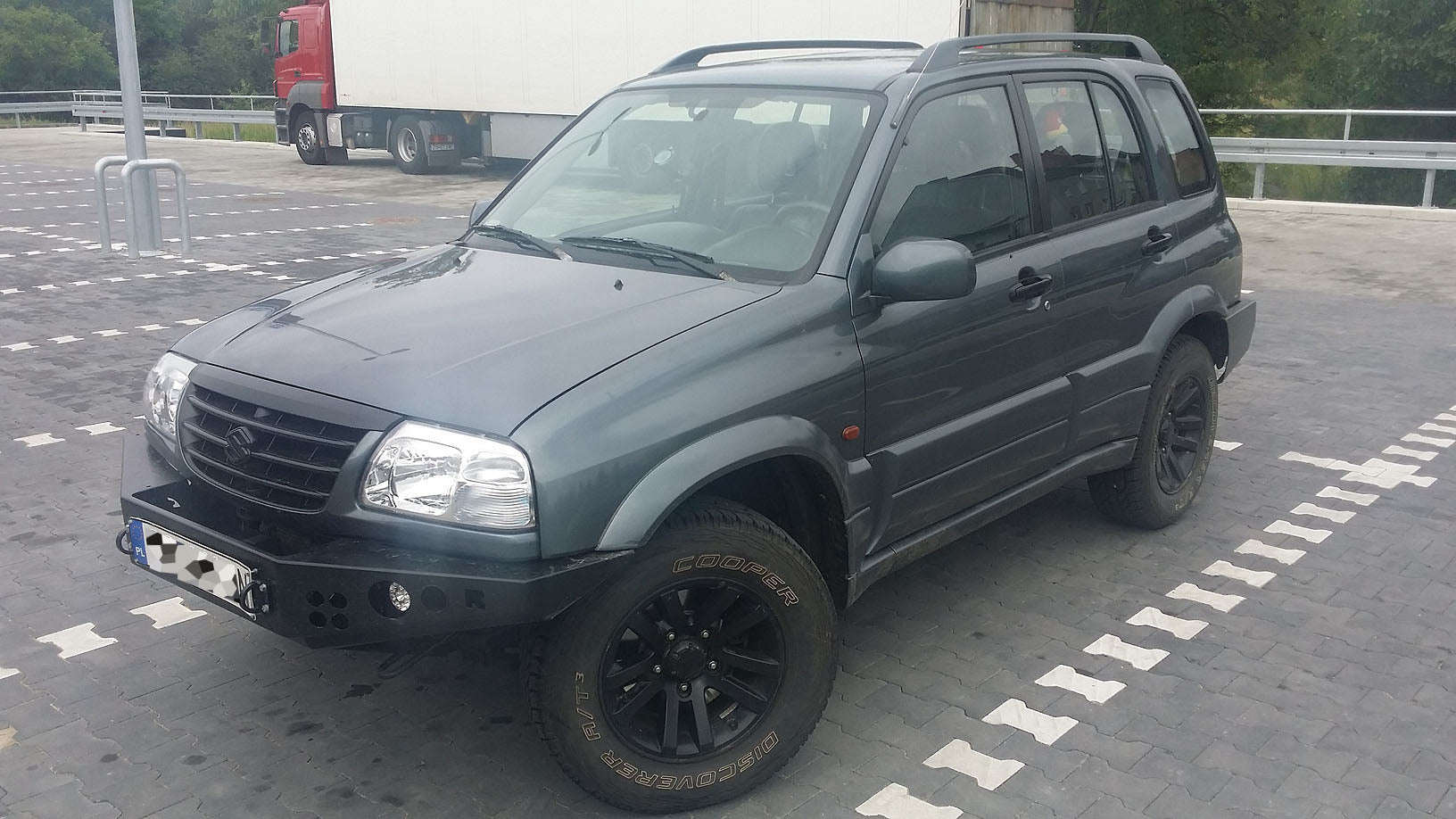

Give your Suzuki Grand Vitara I (3-door, 5-door or XL7) the protection it needs off-road. This steel front bumper is the perfect solution to massively secure the front of your vehicle while providing the necessary base for winching.

Robust Construction & Perfect Fit

Each bumper is manufactured with the highest precision to achieve an optimal balance between weight and stability:

• Material thickness: Made of 3 mm thick steel sheet, with the mounting points to the frame massively executed in 5 mm thickness.

• Manufacturing technique: All components are laser cut and bent on modern CNC press brakes.

• Corrosion protection: The component receives a double powder coating in matte black (RAL 9005) for a long service life under off-road conditions.

Off-road Features & Functionality

• Integrated winch plate: The bumper is already prepared for mounting an off-road winch.

• Hi-Lift mounts: Special openings allow you to safely attach your Hi-Lift jack directly to the bumper.

• Shackle mounts: Mounting holes for recovery shackle mounts are available. The matching mounts can be ordered as optional accessories in our shop.

• Including LED daytime running lights: The set already includes integrated LED lights for better visibility in everyday use and off-road.

Colors & Finish

As standard, we deliver the bumper in Matte Black (RAL 9005).

• Individual RAL color: For an extra charge, you can choose any color from the RAL palette. Simply enter your desired RAL code in the comment field during the ordering process.

Note on individual colors: Since the bumper is custom-made for you if you choose a specific color, the right of withdrawal for these personalized items is excluded.

Important Notes on Assembly & Production

• Assembly: For an extremely solid attachment, we recommend drilling 4 to 6 additional holes (Ø 10 mm) into the frame. Welding is not required.

• Specialist workshop recommendation: We strongly recommend having the assembly carried out by a specialist workshop. A correct connection to the frame is essential for safety when using winches.

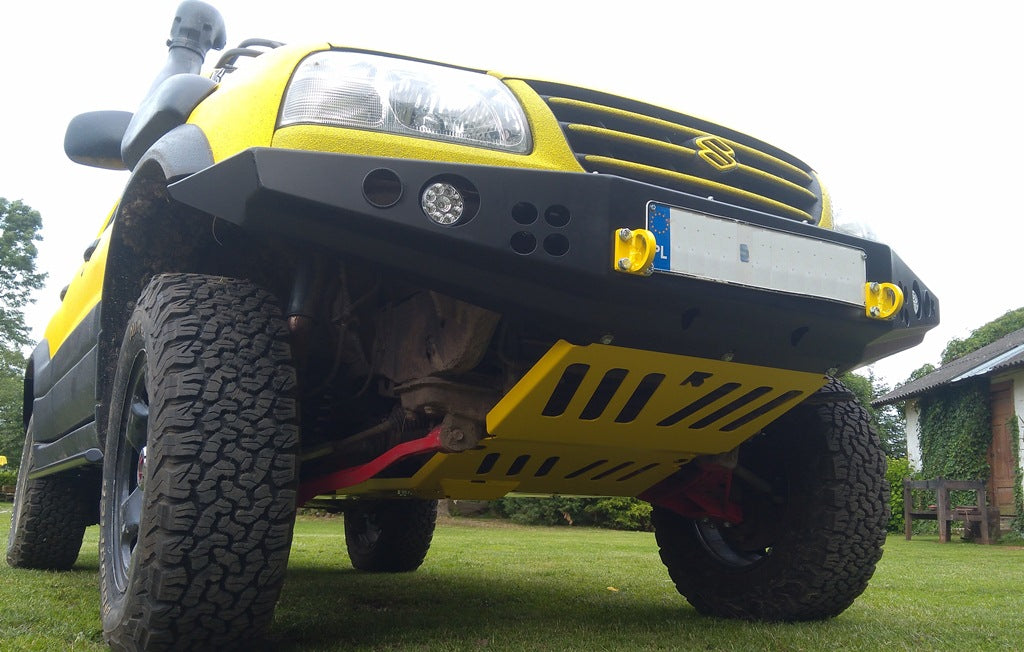

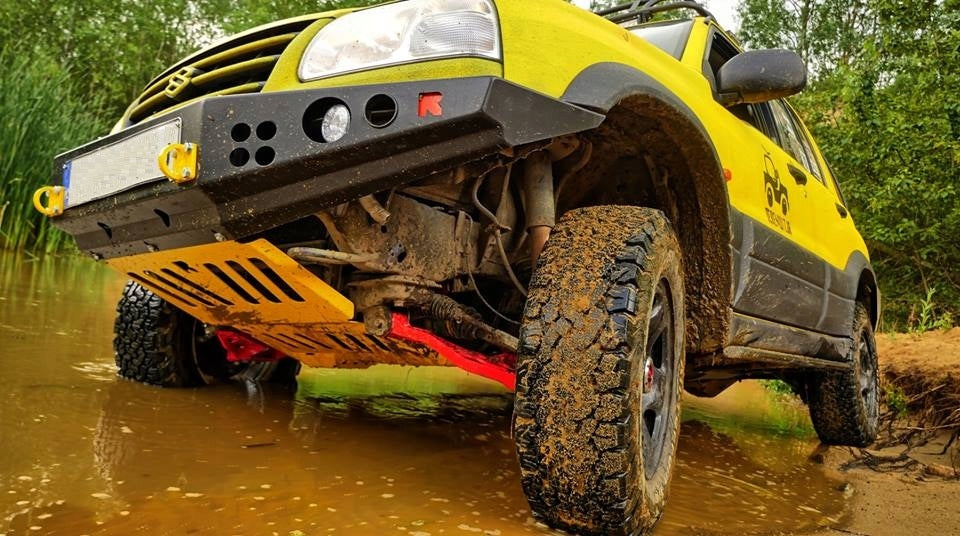

• Additional accessories: Matching this bumper, you can also order skid plates for the differential and for the gearbox from us. The skid plate shown in the photos is not included in the scope of delivery.

• Production time: Since each bumper is individually manufactured, the delivery time is up to 8 weeks.

• Legal: This bumper has no road legal approval (no expert opinion/ABE). Please clarify a possible individual acceptance before purchase with an expert.

Scope of Delivery

• Steel front bumper with integrated winch plate

• LED daytime running light set

• Complete mounting kit (frame mounts, screws, washers, nuts)
