Underride protection Compressor Air Suspension - Land Rover Discovery 3 & 4

• Land Rover

• Discovery 3
• Discovery 4

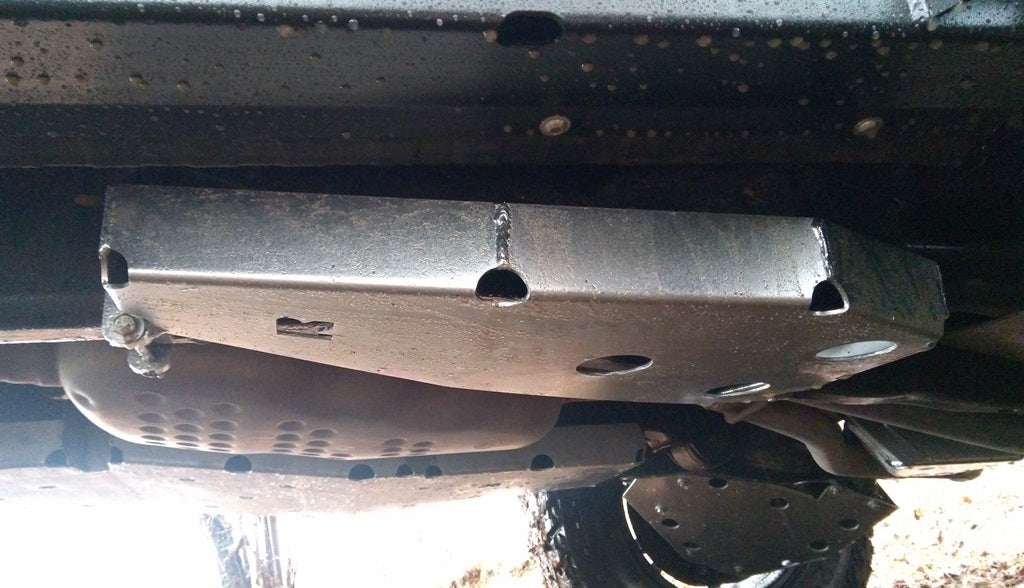

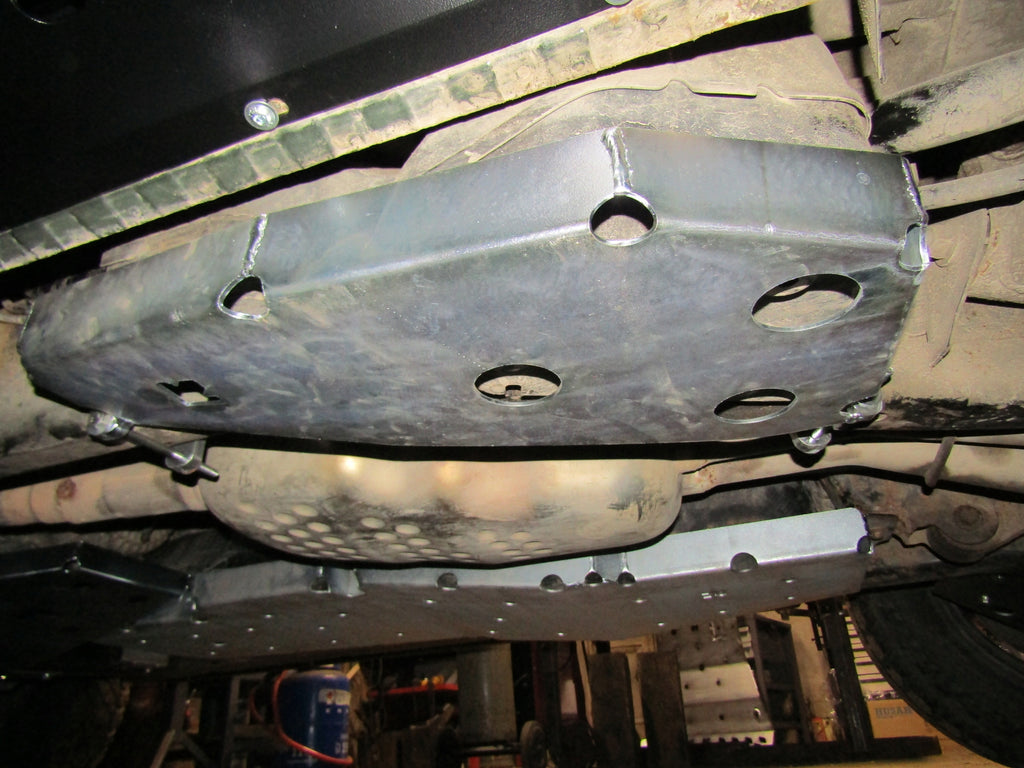

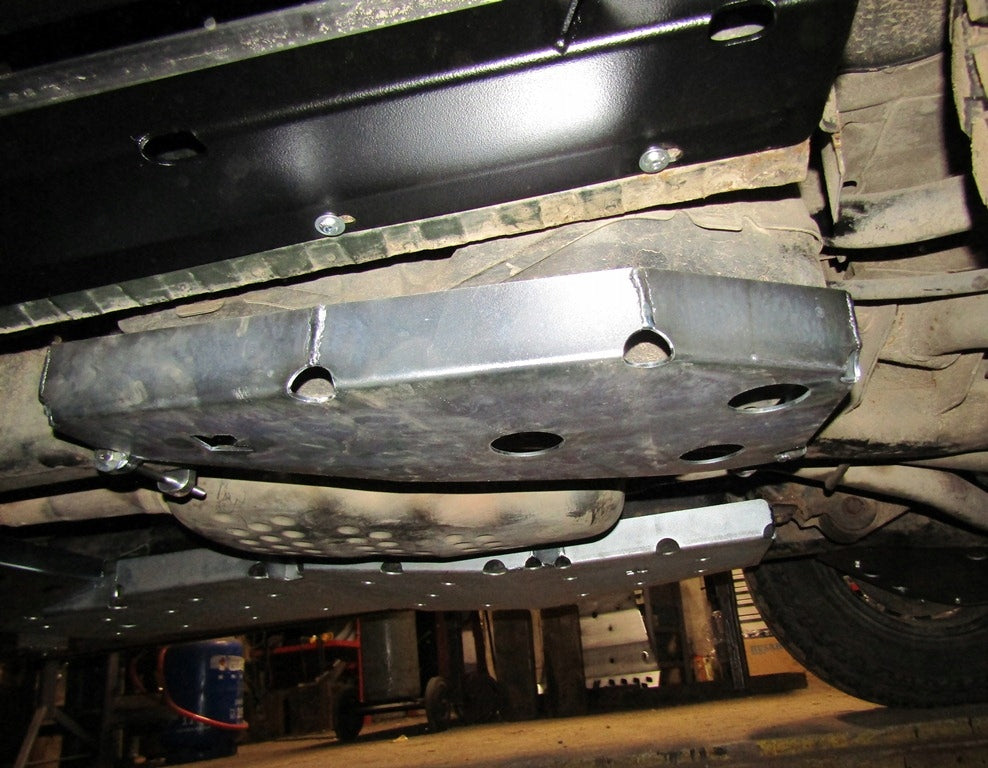

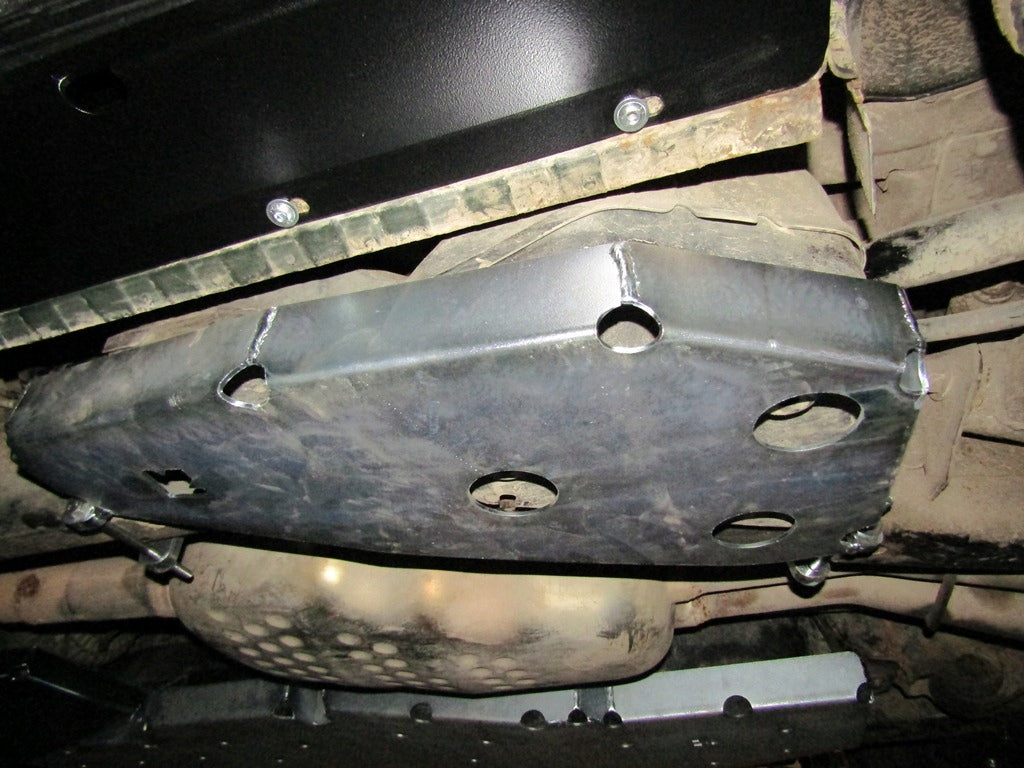

Protect one of the most sensitive and expensive components of your Land Rover Discovery (L319). The air suspension compressor is located in an exposed position on the chassis and is highly vulnerable to off-road conditions and environmental influences. Our robust steel skid plate provides the necessary armor to prevent suspension failures due to mechanical damage.

Solid construction for maximum protection

This protection was specially designed for the harsh conditions of off-road use and features extreme material thicknesses:

• Heavy-duty construction: Made from a combination of 3 mm and solid 12 mm thick steel plates. This material thickness guarantees that even heavy impacts on rocks will not reach the compressor.

• Precision manufacturing: All parts are CNC laser cut and bent on CNC press brakes, ensuring an exact fit.

• Excellent corrosion protection: The entire construction is galvanized to permanently protect the compressor from water, mud, and road salt.

• System addition: This plate ideally complements your underbody protection and is the perfect addition to our skid plates for the engine, transmission, fuel tank, and rear axle (not included).

Easy installation without drilling

The installation is designed to leave your vehicle's frame undamaged:

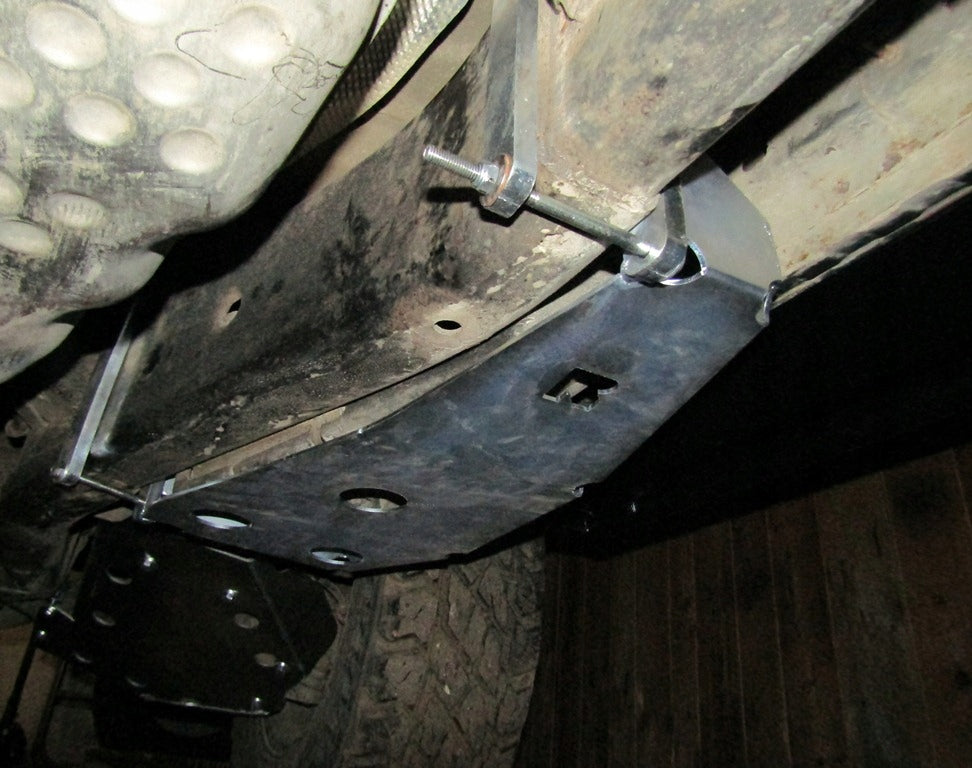

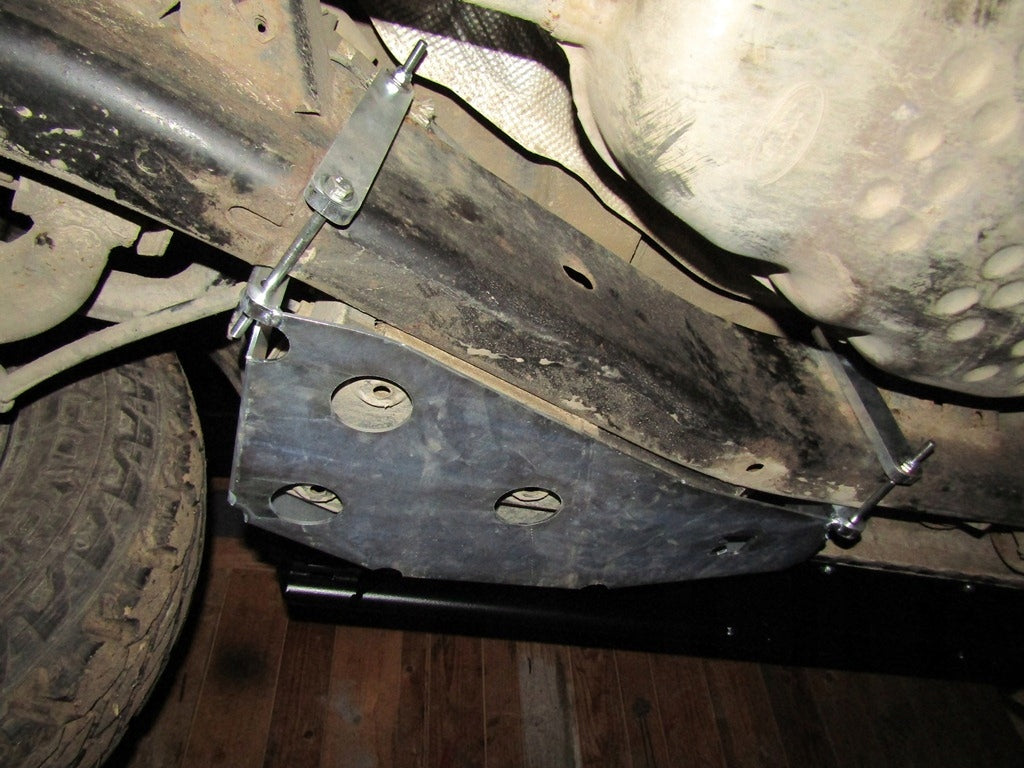

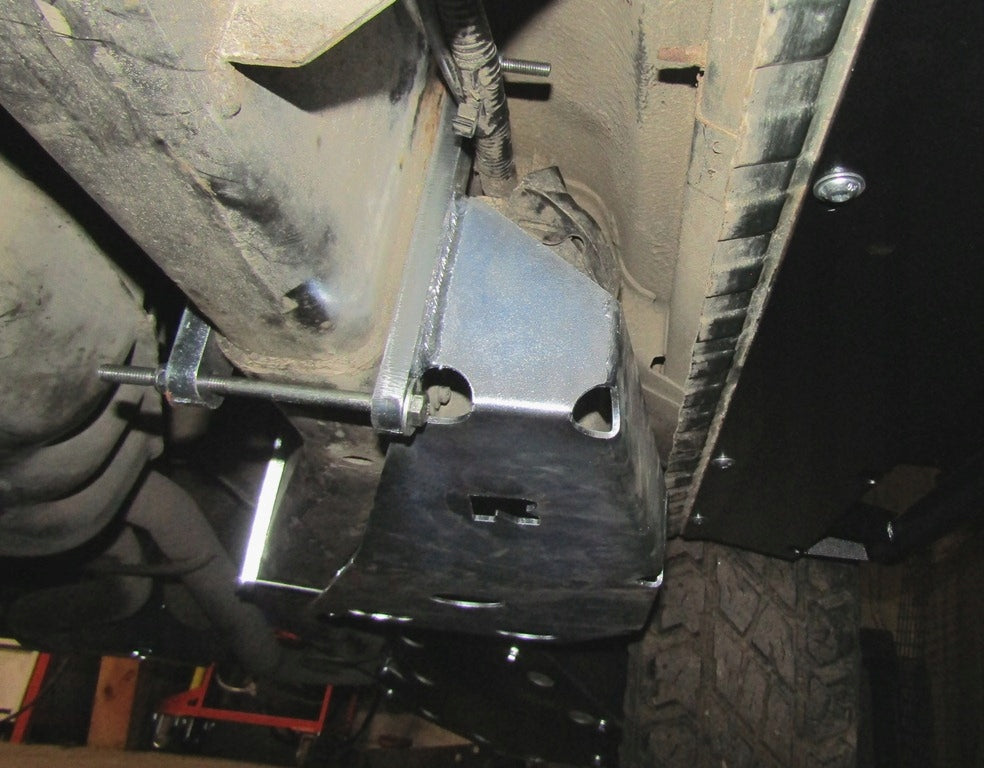

• Clamp fastening: The protector is attached directly to the frame using special mounting clamps. No drilling, cutting, or welding is required.

• Plug & Play: All parts required for installation are included in the set. Thanks to the thoughtful design, the protector can be installed in a short time.

• Non-destructive removal: Since no holes are drilled, the protector can be removed without leaving any residue at any time.

Important notes

• Production time: As we manufacture each component with a focus on quality and accuracy of fit, the delivery time can be up to 8 weeks if the product is not directly available from stock.

Scope of delivery

• 1x Compressor skid plate (galvanized)

• Complete mounting kit including frame clamps
